PE jaw crusher

Working Principle of PE Jaw Crusher
---It is mainly composed of frame assembly, swing jaw assembly, toggle, tie-rod spring device, driving device and so on.
---The motor drives eccentric shaft, toggle movement and triangle belts, and thus drives the swing jaw to make a complicated swing movement.
Due to the swing movement of the swing jaw, ores lumps fed into the crushing chamber will be broken into pieces under the squeezing as soon as the swing jaw departs from the stationary jaw plate.

Characteristics of PE Jaw Crusher
1. High ratio of crushing
2. Homogeneous final grain size
3. Simple structure
4. Reliable working condition
5. Easy maintenance
6. Low operating cost

Application of PE Jaw Crusher
It is widely used in the fields of mining, metallurgical industry, building material, highway, railway, and chemical industry to crush kinds of mining stones, and the material with the largest compression resistance at 320MPa.

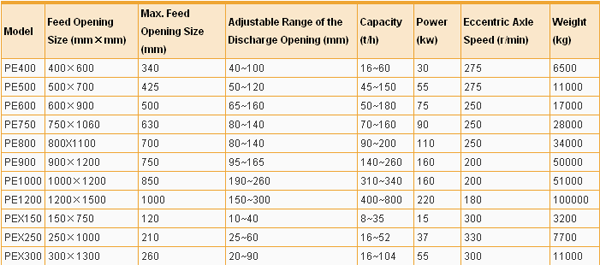

Technical Parameters of PE Jaw Crusher
